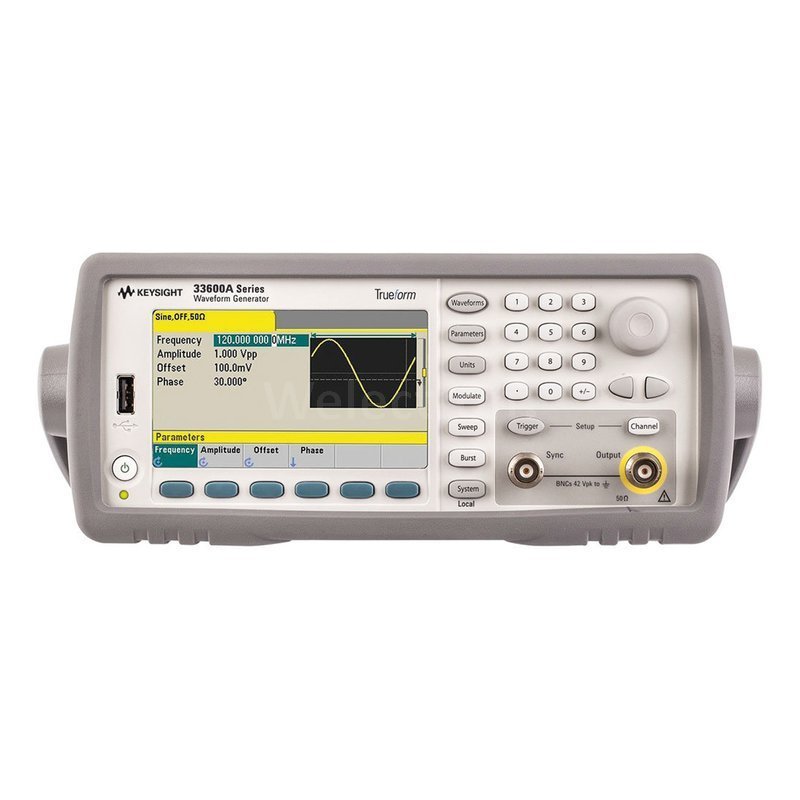

Trueform Series Waveform/Function GeneratorsAgilent 33621A, Keysight 33621A, is an Arbitrary Waveform Generator from Agilent. An arbitrary waveform generator (AWG) is a type of electronic test equipment people use to generate repetitive or single-shot electrical waveforms. Single-shot waveforms require a triggering source, either internal or external, while repetitive waveforms do not. Inject the signal the waveform generator creates into a device for analysis during testing, finding problems with the device, or confirming proper operation.Keysight 33600A Series waveform generators with exclusive Trueform signal generation technology offer more capability, fidelity, and flexibility than previous generation DDS generators. Quickly generate the full range of signals you need to your devices with confidence; the signal generator is outputting the signals you expect.Agilent 33621A, Keysight 33621A Agilent Arbitrary Waveform Generator Features80 & 120 MHz1- & 2-channel modelsUp to 100 MHz pulse1 GSA/s sampling rate14-bit amplitude resolutionTrueform arbitrary waveforms, sequencingUp to 64 MSA per channel arb memoryLow jitter: 1 ps, low phase noise: -125 dBc/HzLow harmonic and spurious distortionPRBS serial patternsOptional high-stability time-baseThree-year warrantyThe 33600A Series provides 4 upgradable models in 80 and 120 MHz, 1- or 2-channels, Trueform arbs with sequencing and 64 MSA memory, 1 ps jitter (1/100th the jitter of DDS generators) and 5x lower harmonic distortion than DDS generators. The 33600A Series offers a full set of standard features and an optional baseband I-Q signal player that is designed to accelerate your development process from start to finish.Unmatched capabilities for generating a full range of signals The 33600A Series waveform generators offer the common signals and features you expect, such as modulation, sweep and burst. However, it also offers features that give you the capabilities and flexibility you need to get your job done quickly — no matter how complex, like LAN, USB, and optional GPIB interfaces. The 33600A Series waveform generators offer a variety of capabilities designed to help you accelerate your testing and get your project wrapped up faster:Waveform summing and combining capabilityVariable-bandwidth noiseWaveform sequencingPseudo-random binary sequence (PRBS) pattern generationSmartphone and tablet accessFlexibility in creating and playing waveformsBuilt-in Web browserStandard deep memoryUnique features of the 33600A Series waveform generators100 MHz PULSEHigh-bandwidth pulse, 100 MHz, DDS pulse limited to 50 MHz Set leading and trailing edge times independentlyPRBS PATTERNSProvides standard PRBS patterns, PN3 through PN32 Select PN type, set bit rate, set edge times2-CHANNEL COUPLINGDual-channel coupling, frequency and amplitude, and tracking Set start phase for each channel, phase shift between channelsCOMBINING SIGNALSSum two signals together, frequency and amplitude independent 2-tone (4-tone on 2-ch), square-sine, noise on pulse, and othersTRUE FORM ARBSCreate up to 4 million samples standard, 64 million optional Connect arb segments together, with up to 512 segmentsLOW VOLTAGE SETTINGSLower voltage range at 1 mVpp, DDS is only 10 mVpp Set high and low voltage limits to prevent overload on DUTBAND-LIMITED NOISEAdjust bandwidth to concentrate the energy of the noise Noise source goes to full 120 MHz bandwidthOvercomes DDS limitations Keysight’s Trueform technology offers an alternative that blends the best of DDS and point-per-clock architectures, giving you the benefits of both without the limitations of either. Trueform technology uses an exclusive digital sampling technique that delivers unmatched performance at the same low price you are accustomed to with DDS.4 Models to Choose From Choose the model with the capability you need now, knowing you can upgrade bandwidth and/or memory later. All models come with a rich set of built-in, standard features, including LAN, USB, and optional GPIB interfaces, 4 MSample of memory, an external timebase input, and basic waveform generation software. You get everything you need to generate clean, precise, low-noise signals for testing your designs.33600A Series waveform generators with Trueform technologyWaveform generator33611A33612A33621A33622ABandwidth80 MHz80 MHz120 MHz120 MHzNumber of channels1212Keysight BenchVue Software license includedChoose Model:33611A (80 MHz, 1 Channel)33612A (80 MHz, 2 Channels)33621A (120 MHz, 1 Channel)33622A (120 MHz, 2 Channels)Reference LibraryAgilent-33621a-Brochure
